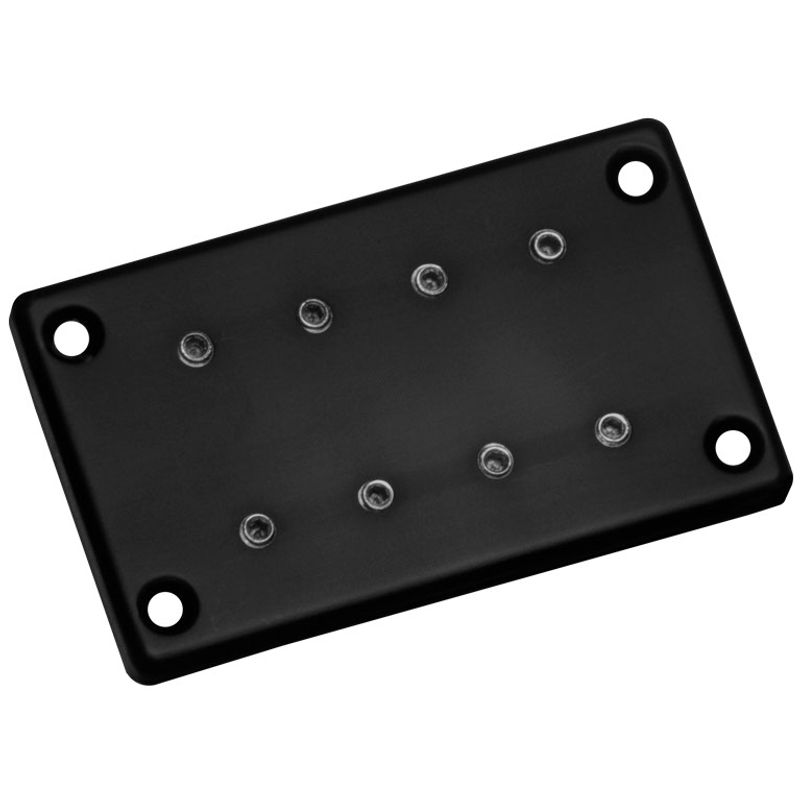

Model One™ DP120BK.
Originally designed as a direct replacement for Gibson® EB series neck pickups, the Model One™ has found new life as a woofer/tweeter in multipickup bass setups.
By combining the Model One™ with Split P™, DiMarzio Model P®, or DiMarzio Model J™ pickups, you can effectively turn your bass into a woofer/tweeter setup with on-board control of sonic extremes.
By sending the Model One™ to a rig with an 18-inch speaker cabinet and plugging the other pickup´s output into your regular gear, you have the makings of a sound with earth-moving bottom and crisp, transparent high-end.
What´s that sound like? Check out Billy Sheehan. It´s the monstrous sound he´s pioneered that´s made Rock shake for years.
Recommended for:
Neck position, narrow string spacing.
Tech Talk
Warm, full tone, no mud. For maximum high-end response, try 500K controls. For even brighter and cleaner sound, try switching the coils from series to parallel: the volume drops a bit, but the midrange really opens up and acquires a more acoustic quality.
Specs – DP120BK
| Finish: | Black | |
| Wiring: | 4 Conductor | |
| Magnet: | Ceramic | |
| Output: | 200 mV | |
| DC Resistance: | 11.31 kOhm | |
| Year of introduction: | 1976 | |
| Patent: | n/a |
