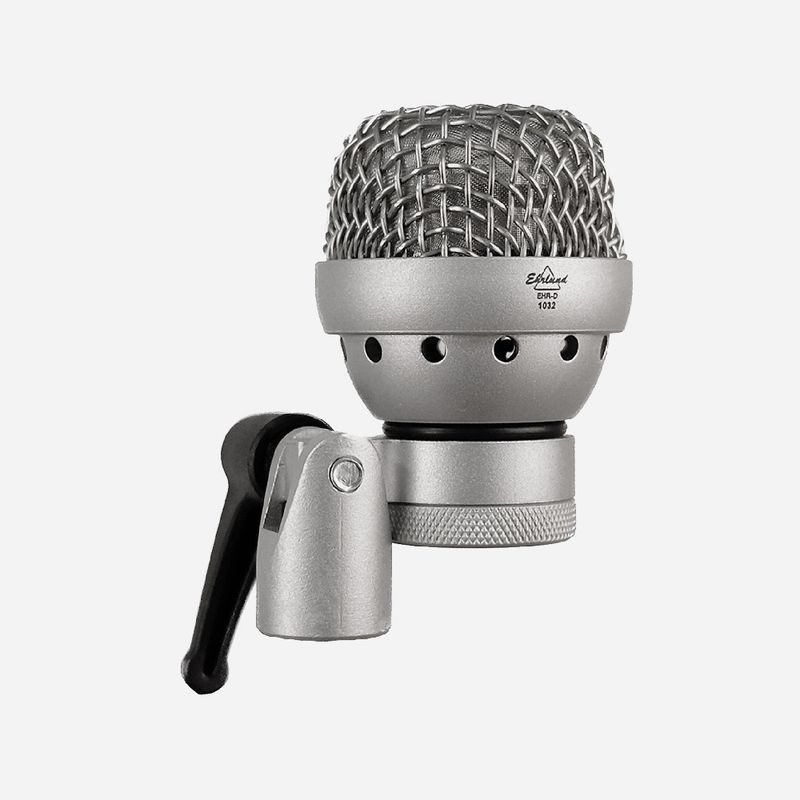

Ehrlund EHR-D

Condenser mic for Drums, Guitars & Horns

The EHR-D is the smallest, lightest and most durable of our large diaphragm condenser microphones. It is optimised for live performances and to make recordings of percussion, strings, woodwind and other types of instruments. The coarse dirt filter, robust design and compact size makes it perfect for musicians on tour. It has a slightly narrower polar pattern than true cardioid which makes it great for miking instruments without getting other sounds “bleeding in” from the sides.

TECNICAL INFORMATION

TYPE Condenser microphone with triangular membrane

RECORDING RANGE True cardioid

FREQUENCY CAPTURE RANGE 7-87 000 Hz

IMPEDANCE Handles all impedances without altering the frequency response

EQVIVALENT NOISE LEVEL Absolute level lower than 7 dBA

MAXIMUM OUTPUT LEVEL Depends on mixer/input used

POWER FEED 48 V phantom feed, 2,0 mA

CONNECTOR XLR

POLARITY Positive pressure on the membrane produces positive voltage on pin 2 relative to pin 3

CONSTRUCTION Aluminium body, housing made of toughended stainless steel

DIMENSIONS Ø53 mm x 95 mm

WEIGHT 170 grams
