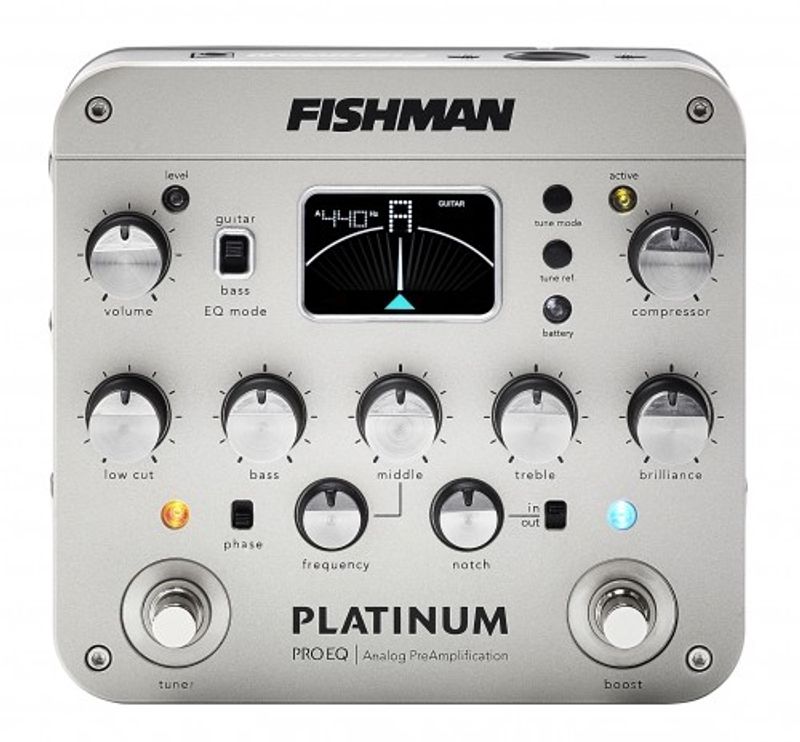

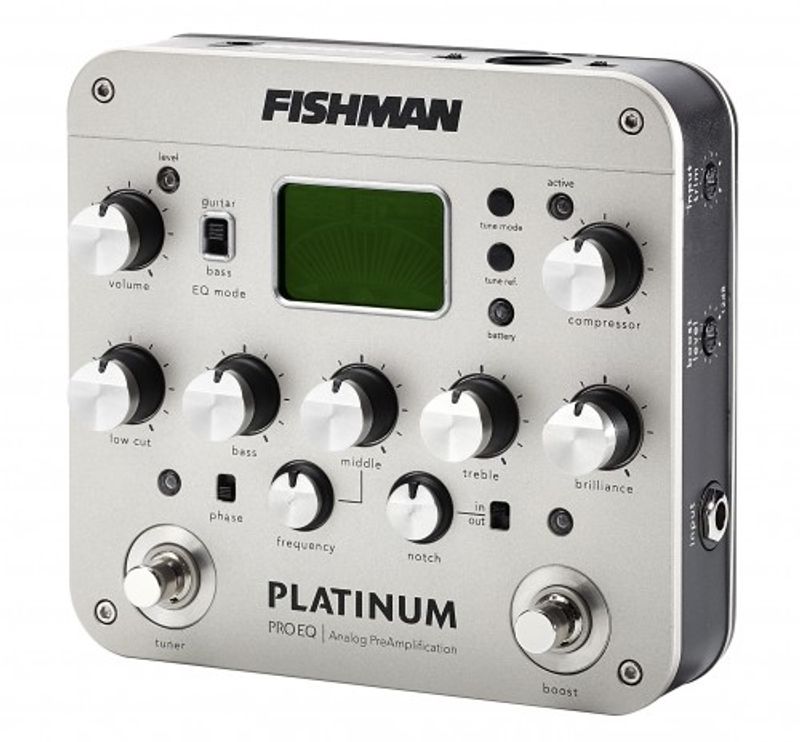

Fishman Platinum Pro EQ Analog Universal Preamp

Completely redesigned from the ground up, the all-analog Platinum Pro EQ universal instrument preamp delivers incredibly accurate sonic detail for any acoustic instrument. A discrete, high-headroom Class-A preamp uses precision, high-speed circuitry for the highest fidelity and low distortion.

Classic Fishman tone centers with sweepable mid are combined with a switchable guitar / bass EQ mode, making the Platinum Pro EQ equally musical for bass instruments and highly versatile for recording and live performance.

The Platinum Pro EQ integrates essential performance features such as an adjustable volume boost and a balanced XLR D.I. output, all housed in a robust, road-ready design.

Built to withstand stage use, the Platinum Pro EQ features durable foot switches for activating the volume boost or the high-contrast chromatic tuner. It also includes a smooth analog soft-knee compressor, an effects loop, and a precision sweepable notch filter.

Features

• 17-volt, high-headroom, discrete Class-A preamp
• 5-band tone control with sweepable mid and low-frequency filter
• EQ mode tailors response for bass or most other instruments
• Phase control and precision notch filter reduce feedback
• One-knob adjustable compressor smooths playing dynamics
• Integrated fully chromatic digital tuner
• Volume boost footswitch with level control (+12 dB)
• Balanced XLR D.I. with pre/post EQ setting and ground lift

Specifications

• Tone shaping: 5-band EQ with sweepable mid, adjustable low-cut filter
• Feedback control: sweepable notch filter and phase invert switch
• Dimensions: 6.2″ × 5.6″ × 2.2″ (158 × 143 × 54 mm)
• Power: 9-volt battery (not included), Fishman 910-R AC adapter (optional)

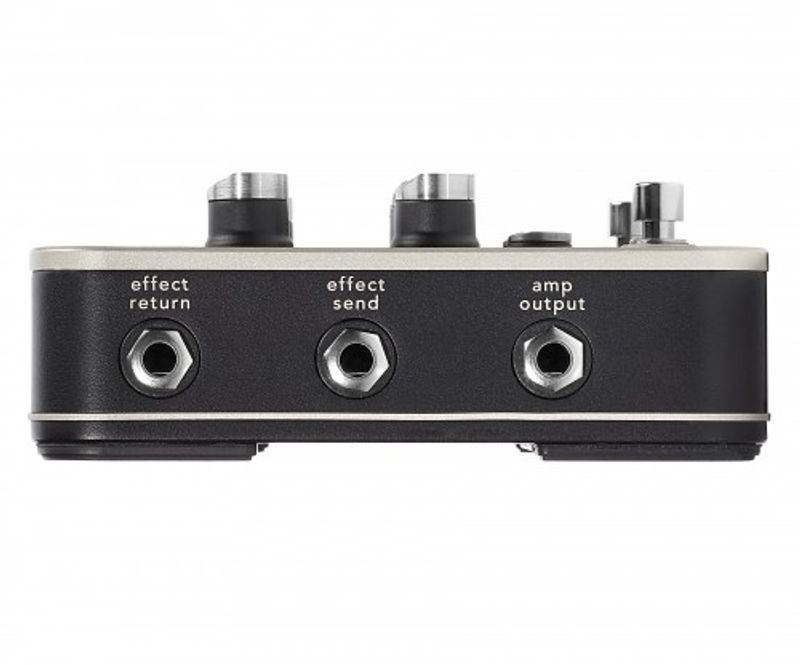

Audio I/O

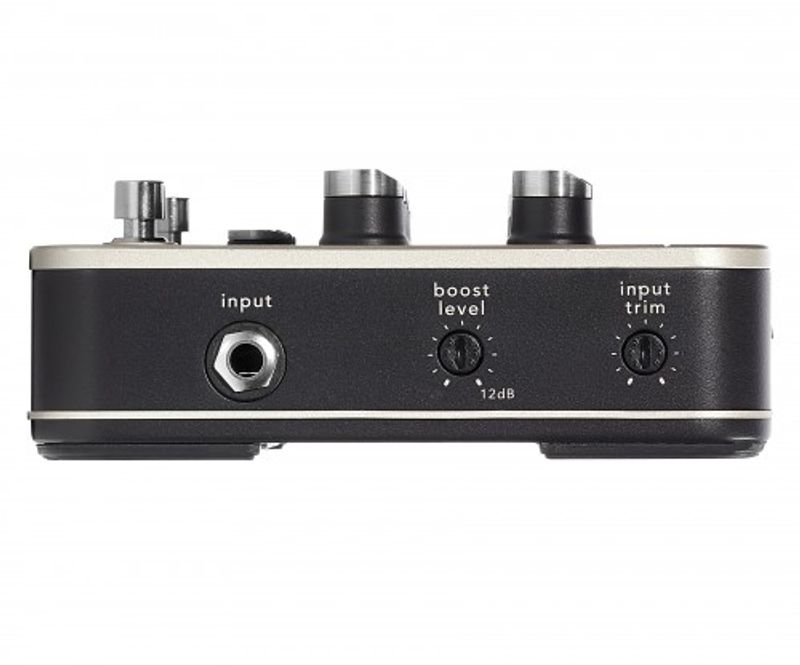

• 1/4″ instrument input
• 1/4″ amplifier output

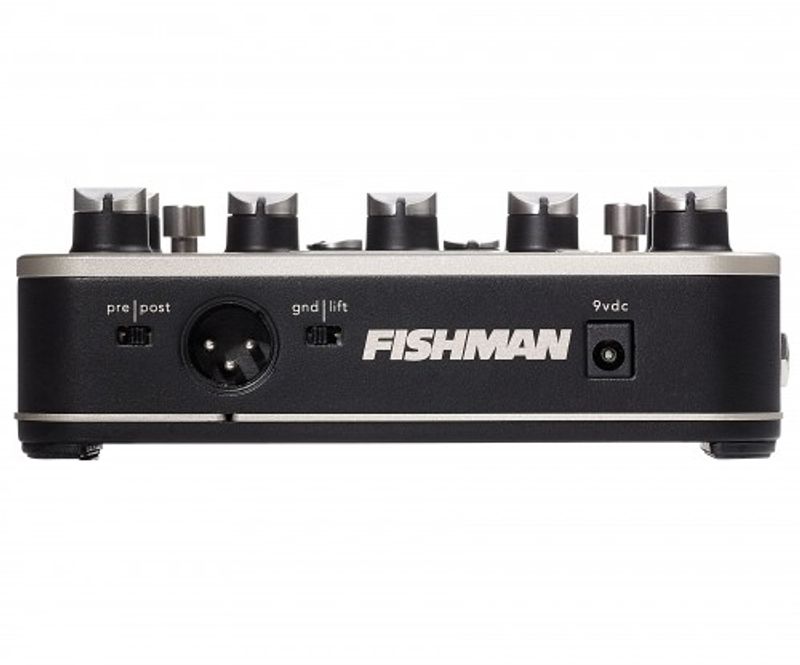

• XLR balanced D.I. output with ground lift switch
