8.279,-
Ikke på lager
Informasjon
Description
Continuing the tradition of the original MAGELLAN® amplifier design, the MAGALLAN® 800+ represents a new pinnacle in lightweight, high-output, versatile, bass amplification. Our years of research, design and manufacturing expertise, along with listening to players’ needs, has helped us to develop this model utilizing stringent design parameters for performance, form, function, fit and finish. The new MG-800+ continues the reputation of the original design as a simple interface for the user and one of the most musical amplifiers available.
The MG-800+ is a solid-state, all analog design and provides the tonal palette needed to cover all of the bassist’s amplifier requirements; from natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures with “weighted feel to the notes”. This is packaged within the classic Magellan styling and all-aluminum chassis, weighing only 6.25 lbs.
The expanded feature set and output power level make this amplifier an essential tool on the global stage, and with its universal power supply, the MAGELLAN® 800+ can be used with any voltage around the world without modification.
FEATURES:
- Updated input circuitry for increased dynamics
- All new DRIVE circuitry delivering a wide range of tube-like harmonics and compression — and foot switchable
- New HPF (High Pass Filter) — multi-slope, frequency dependent and adjustable between 25-120Hz
- Our unique Dual Contour Circuit — foot switchable and separately adjustable
- New 4 Band Active EQ with two Sweepable midrange frequencies
- New high-grade op-amps for lower noise threshold and higher dynamic headroom, throughout the preamp
- Optional dual function footswitch — DRIVE & CONTOUR functions
- Light weight @ 6.25 Lbs
Produsent
Genzler er et amerikansk forsterkerfirma. Jeff Genzler er kjent for noen som den tidligere halvdelen av Genz-Benz-merket. Etter at han startet for seg selv, har Jeff nå et bredt sortiment av forsterkere, kabinetter og pedaler under Genzler-navnet
Video
Spesifikasjoner

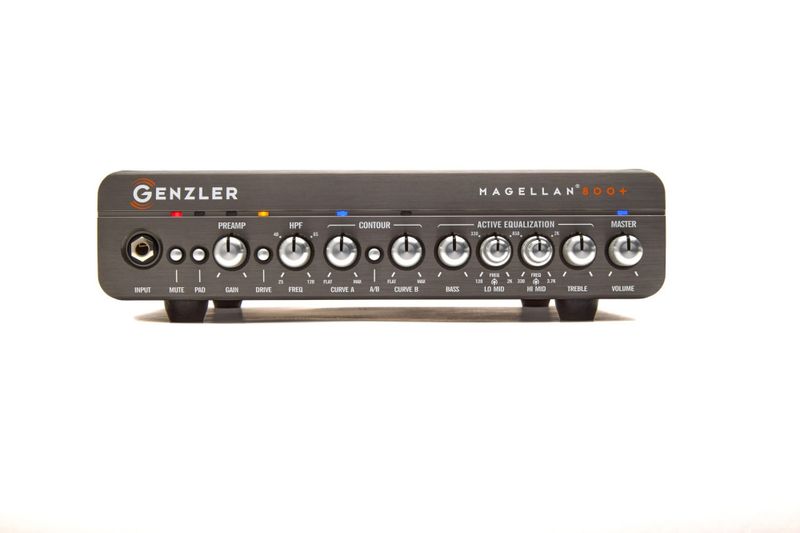

| Front Panel Features | |
| ¼” Input | |
| Signal Mute Switch | |
| Input Pad (- 8.5dB) | |
| Gain Level Control | |
| Drive Channel Switch | Voiced for a Driven Tonal Signature and Harmonic Texture, Controlled by Gain Level Control & Master Volume |
| HPF — High Pass Filter | Variable from 25 – 120Hz |
| Dual-Curve Variable Contour Circuitry | Footswitchable |
| Curve A | Classic to Modern — Smooth Mid Scoop Curve w/Increased Lows & Highs |
| Curve B | Thicker to Vintage — Low-Mid Bump w/Tapered Top End |
| Flat Position | Full Bypass |
| Active 4 Band EQ w/2 Parametric Mid Controls | |
| Bass | +/- 15dB @ 75Hz |
| Lo Mid | +/- 15dB variable from 120Hz – 2K Hz |
| High Mid | +/- 15dB variable from 330Hz – 3.7K Hz |
| Treble | +/- 15dB @ 6K Hz |
| Master Volume Control | |

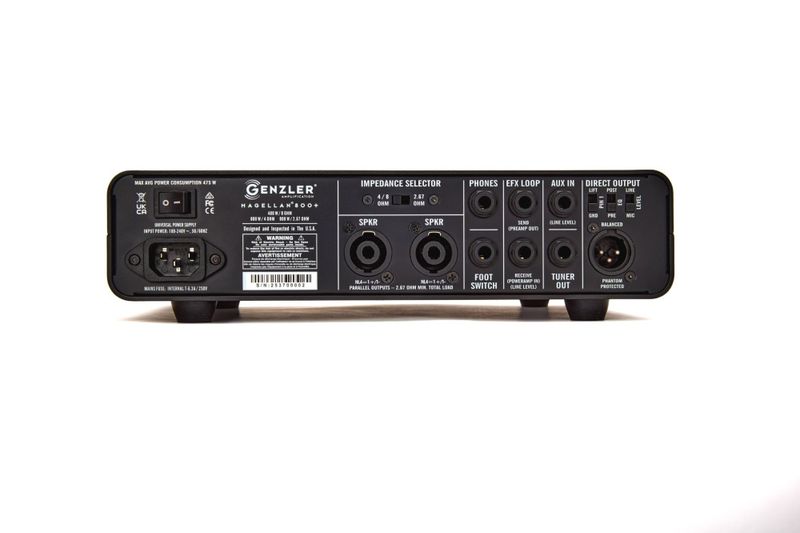

| Rear Panel Features | |
| Impedance Selector Switch | 8/4 ohm to 2.67 ohms |
| Dual Speakon® Speaker Outputs | |
| Headphone Output | |
| Footswitch Input Jack | For optional 2 button footswitch |
| Effects Loop | |
| Tuner Output Jack | |
| Direct Output Interface | Pre/Post |
| Cooling | Thermal sensing variable speed fan |
| Chassis | Aircraft-grade, all aluminum chassis w/extruded aluminum front panel |
| Power Amplifier | Class D with auto-sensing universal switch-mode power supply (100 – 240 V) |
| Specifications | |
| Power Output | 400W/8 Ohms, 800W/4 Ohms, 800W/2.67 Ohms |
| Minimum Speaker Load | 67 Ohms |
| Operating Power Condition | 100 – 240V, 50/60 Hz |
| Dimensions | 3”H x 11.25”W x 10.5”D (76.2mm x 285.75mm x 266.7mm) |
| Weight | 6.25 lbs (2.83 kg) |
| Shipping Data | |
| Dimensions | 5”L x 13”D x 5.75”H (419.1mm x 330.2mm x 146.02mm) |
| Weight | 9 lbs (4.08 kg) |
