To-kanals preamp med rør i sluttrinnet

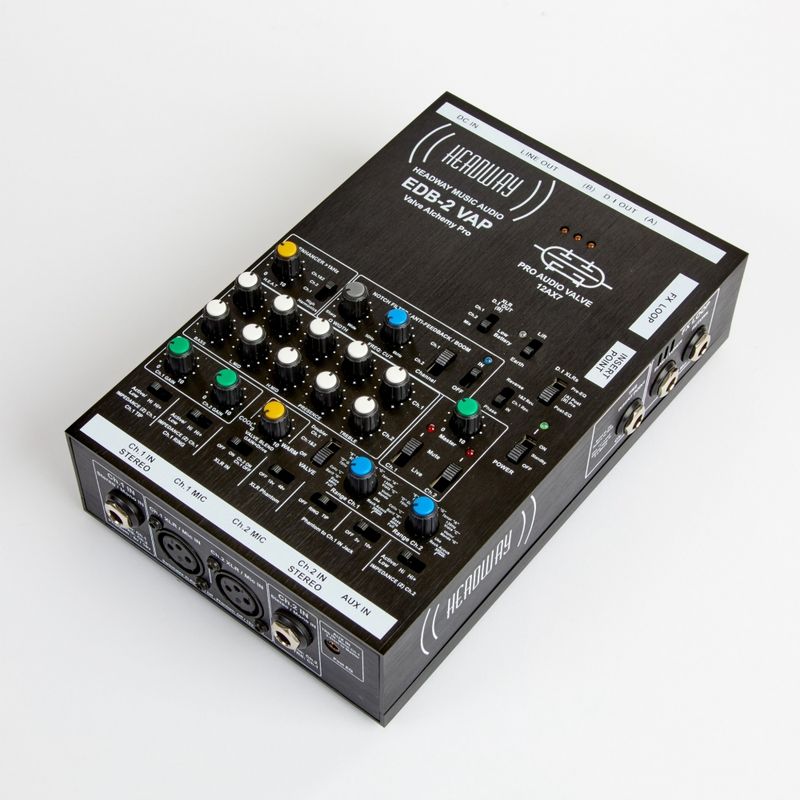

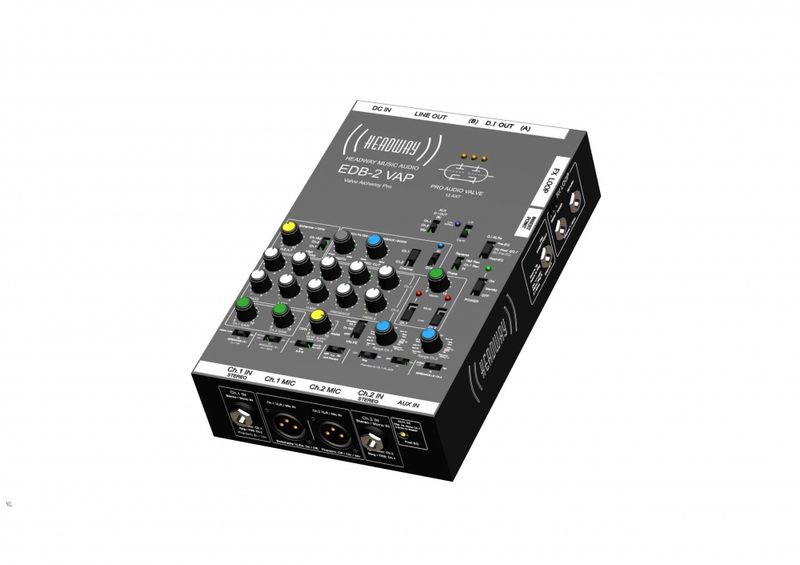

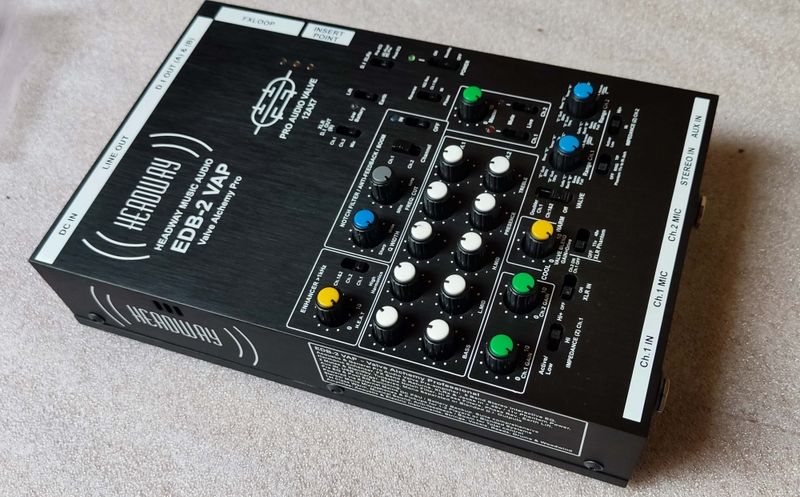

Equaliser Direct Blender ~ Valve Alchemy Professional
2 Channel Pre-amplifier & Harmonic Enhancers
SUPERIOR ACOUSTIC AMPLIFICATION & CONTROL
Acoustic pre-amplifier with pro audio valve (tube), equalisers, D.I., anti-feedback, blender, 48 V / 10 V / 5 V phantom power, dual-action harmonic enhancers and USB charger.
FX loops and expanded routing options for pickups and stereo microphones via DC powering or battery backup.
Suitable for stage and recording, EDB-2 VAP provides a transformative, beautifully voiced, yet practical problem-solving solution to the diverse and critical needs of high-end acoustic musical instrument amplification.
EDB-2 VAP offers a huge range of gain to interface both weak and strong signals with mixers and other sound processors. It features highly effective yet simple interactive EQ and notch filters, plus a warm valve (tube) response that helps defeat piezo “quack” and other common issues.
EDB-2 VAP principles
EDB-2 VAP is a valve pre-amplifier and analogue audio signal processor with multiple features, offering large reserves of gain and headroom to interface with a wide range of devices while providing problem-solving and sound-quality enhancement at low noise.
EDB-2 VAP shapes and equalises uneven tones, warms the sound, reduces piezo “quack” and feedback, improves string separation, enables two sound sources to blend naturally, and provides tools such as input impedance selection, phase reverse and hum-loop cancellation.
Devices to interface with include mixers, effects pedals and rack units, powered monitor speakers, headphone amplifiers, combo amplifiers and power amplifiers.
H.E.A.T harmonic enhancers
EDB-2 VAP offers two uniquely developed analogue H.E.A.T (Harmonic Enhancer) features.
High harmonics are perceived as an “audio sparkle”, adding even harmonics 1–1.5 octaves above 1 kHz. These may replace frequencies not fully amplified by your pickup or microphone, or compensate for dull-sounding, corroded strings.
Rich Harmonics add even harmonics from the blend control via a two-stage valve circuit, perceived as warmth mainly in the mid and low frequencies, with some additional high harmonics. The valve’s slower electrical response smooths transient peaks, reducing piezo “quack” for a more natural sound.
Re-start instantly and quietly using standby and mute functions.
EDB-2 VAP is compact enough for convenient transport and is supplied as standard with a Headway leather (PU) chest bag.
, equalisers, D.I., anti-feedback, blender, 48 V / 10 V / 5 V phantom power, dual-action harmonic enhancers and USB charger.
FX loops and expanded routing options for pickups and stereo microphones via DC powering or battery backup.
Suitable for stage and recordi... "Pin It")
Produsent
Britiske Headway Audio lager preamper til akustiske instrumenter, som kan brukes på kontrabass, men også andre stryke- eller akustiske-instrumenter.
Spesifikasjoner
Features:
- Customer-led expanded features, now dual instrument / player friendly, blended two-stage valve “Rich Harmonics” and analogue “High Harmonics”
- Allows blending across two channels from stereo jack input combined with phantom powering options, plus three phantom voltages, extra D.I. outputs and pre/post EQ
- Expands the appeal from purely acoustic string applications into archtop guitars, jazz, blues, electric guitar, and broader orchestral and folk instrument use
- H.E.A.T. – Harmonic Enhanced Analogue Technology with tuneable added “Rich & High Harmonics”
- Improved Class “A” inputs and lower-noise pro audio circuits voiced for clarity and warmth, producing up to 32 dB of gain
- Twin channels with two sets of five-band interactive EQ and two quiet mute switches
- Phantom power to jack and XLRs: 48 V, 11 V and 5 V
- Mono, stereo and balanced inputs with two XLR inputs, enabling true stereo condenser microphones to be powered across two channels
- Three-way input impedance switches on each channel
- Send/return and insert points provide FX loops for optimal connection of effects or tuner, separately via both channels
- “Range” rotary controls on each channel provide a variable high-pass filter to optimise low-end response
- Tuneable notch filter on either channel to defeat feedback and resonances
- Phase reverse and earth lift switches to correct phase imbalance, feedback and ground hum
- Highly versatile mono, stereo or blended outputs via line out jack and two balanced D.I. XLRs
- USB charger socket for digital devices
- BBC pro audio design panel layout for contrast and easy reading
- DC power supply included as standard (100–240 V), low-noise design
- Pre-amplifier mounting option via bracket
- Aluminium enclosure, supplied as standard with leather (PU) chest bag
- Long-life, heavy-feel controls that stay in position
- Comprehensive printed manual
- Designed in the UK – made in Poland (EU)
