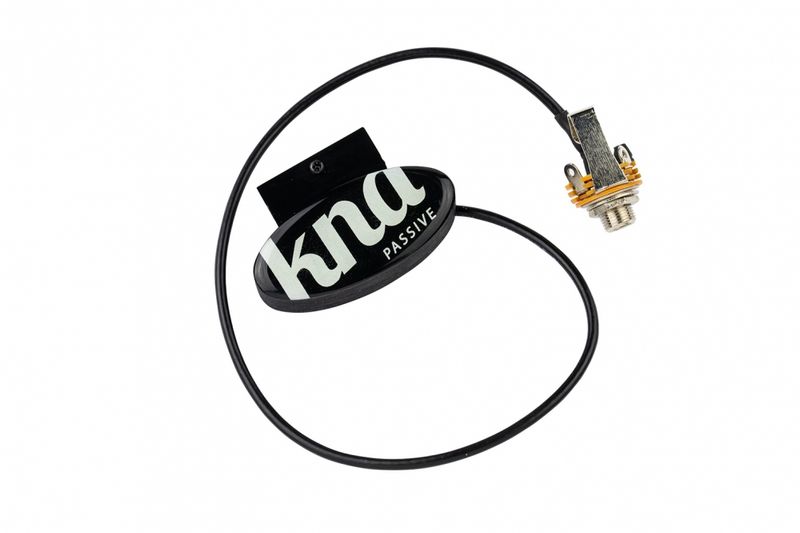

KNA BZ-1 Pickup (Bouzouki)

Passiv pickup for bouzouki

BZ-1 converts your instrument´s natural, resonant tone to a high-fidelity signal ready for an amp or audio mixer.

Neodymium magnets in a passive single-coil design bring a fast, articulate attack and dynamic clarity.

BZ-1 offers a balanced output level between strings and installs without blocking the soundhole.

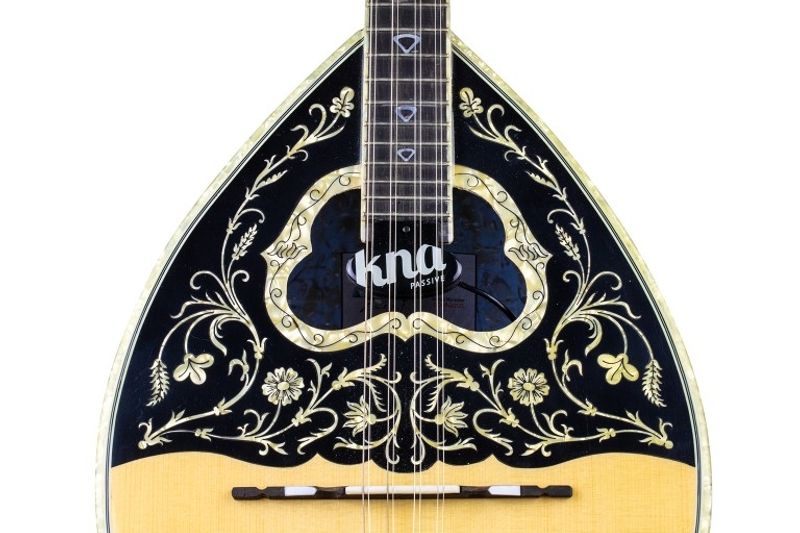

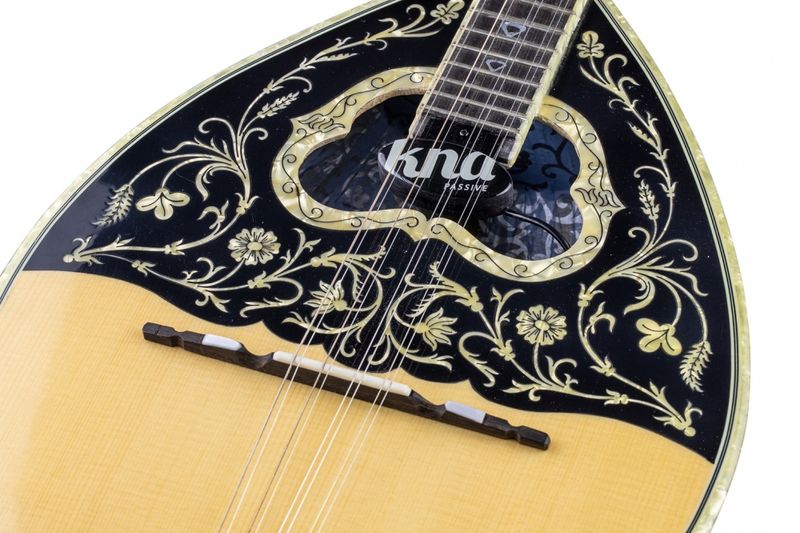

Universal fit to almost any stepped-fingerboard bouzouki
The magnetic part of the pickup was developed to install in practically any bouzouki having a "step"—a flat surface at the end of the fingerboard. The clever design doesn’t block the soundhole of the bouzouki and doesn’t interfere with its resonance.

Wooden housing
The magnetic element is encased in laminated birch with an elegant and stylish black plastic cap. This lightweight assembly achieves maximum tonal sensitivity.

Passive design
BZ-1 has a passive design that reproduces the instrument's natural sound with no need for a battery.

Neodymium magnets
BZ-1 utilizes the power of neodymium magnets, providing fast, articulate attack and dynamic clarity.

Natural balanced sound
BZ-1A offers a balanced output between strings, and captures and reproduces the natural, resonant tone of the bouzouki

Complete installation set
The pickup features a single screw mount, a standard of many bouzouki pickups, and a pre-wired output jack.

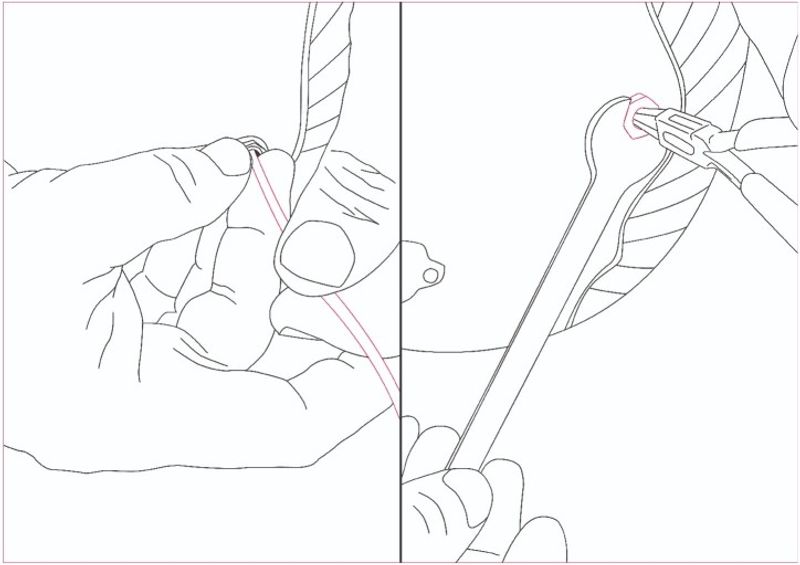

INSTRUCTIONS
Follow our installation guide through the following steps:

SPECIFICATIONS

Weight 45.35g. / 1.6oz
Wood Laminated birch
Pickup dimensions
Width 57.5mm / 2.26"
Lenght 27mm / 1.06"
Height 14.5mm / 0.57"
Mounting plate dimensions
Width 32.2mm / 1.27"
Lenght 10.5mm / 0.41"
Thickness 1mm / 0.04"
Lead wire cable
Lenght 33cm / 1.30"
Impedance 3kΩ
